Kompresor ACX75

Kompresor ACX75

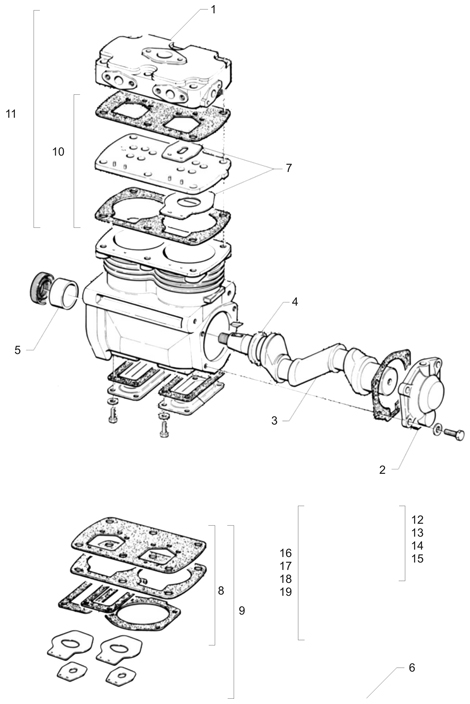

NO.
DESCRIPTION
CARGO NO.
OTHER INFORMATIONS

1
Cylinder Up Head
KR.1170.002


2
Bearing Flange Rear
KR.1160.007
for AC71C

2
Bearing Flange Rear
KR.1170.003
for AC74ZA

2
Bearing Flange Rear
KR.1150.063
for ACX75ZA

2
Bearing Flange Rear
KR.1150.062
for ACX75ZF-ZG-ZM-ZBX

2
Bearing Flange Rear
KR.1150.004
for AC77A-B

2
Bearing Flange Rear
KR.1200.004 + .005
for AC79B

2
Bearing Flange Rear
KR.1200.006
for AC79C, AC80A

3
Crankshaft
KR.1160.006
for AC71C

3
Crankshaft
KR.1170.006
for AC74ZA

3
Crankshaft
KR.1180.006
for ACX75ZA

3
Crankshaft
KR.1180.008
for ACX75ZBX

3
Crankshaft
KR.1180.009
for ACX75ZM

3
Crankshaft
KR.1190.001
for ACX77A

3
Crankshaft
KR.1190.002
for ACX77B

3
Crankshaft
KR.1200.001
for AC79B-C

3
Crankshaft
KR.1200.002
for AC79CG

3
Crankshaft
KR.1300.002
for AC80A

4
Crankshaft Thrust Ring
KR.1150.009


5
Crankshaft Bearing Front
KR.1170.005


6
Connecting Rod
KR.1080.009
for AC71C, AC74ZA, AC77A-B, AC79B-C, AC80A

6
Connecting Rod
KR.1080.030
for ACX75ZFG-ZGG-ZMG-ZBX, ACX79CG

7
Valve Set
KR.1150.018 x 2


8
Gasket Set
KR.1180.025
dla AC74ZA brak uszczelki pokrywy korpusu dół

9
Gasket and Valve Set
KR.1160.047
dla AC74ZA brak uszczelki pokrywy korpusu dół

10
Valve Plate Complete
KR.1170.016


11
Cylinder Liner Head Complete
KR.1170.017


12
Piston Ring Set 80,00 mm
KR.1150.015


13
Piston Ring Set 80,20 mm
KR.1150.037


14
Piston Ring Set 80,50 mm
KR.1150.016


15
Piston Ring Set 81,00 mm
KR.1150.017


16
Piston 80,00 mm
KR.1150.012
for AC774ZA, AC77A-B, AC80A

16
Piston 80,00 mm
KR.1180.016
for AC71C, ACX75ZFG-ZGG-ZMG-ZBX, AC79B-C, ACX79CG

17
Piston 80,40 mm
KR.1150.013
for AC774ZA, AC77A-B, AC80A

17
Piston 80,20 mm
KR.1180.019
for AC71C, ACX75ZFG-ZGG-ZMG-ZBX, AC79B-C, ACX79CG

18
Piston 80,50 mm
KR.1150.0131
for AC774ZA, AC77A-B, AC80A

18
Piston 80,50 mm
KR.1180.017
for AC71C, ACX75ZFG-ZGG-ZMG-ZBX, AC79B-C, ACX79CG

19
Piston 80,60 mm
KR.1150.014
for AC774ZA, AC77A-B, AC80A

19
Piston 81,00 mm
KR.1180.018
for AC71C, ACX75ZFG-ZGG-ZMG-ZBX, AC79B-C, ACX79CG
