Kompresor RVI 100MM

Kompresor RVI 100MM

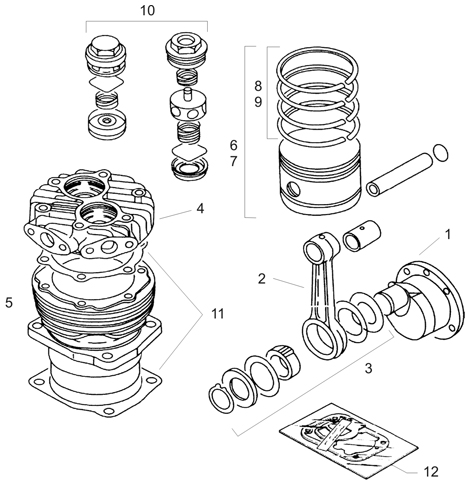

NO.
DESCRIPTION
CARGO NO.
OTHER INFORMATIONS

1
Crankshaft
RV.7700.001


2
Connecting Rod
RV.7700.002


3
Connecting Rod Bearing
RV.7700.003


4
Cylinder Up Head
RV.7700.005


4
Cylinder Up Head
RV.7700.007
MAGNUM

5
Cylinder Liner
RV.7700.013


5
Cylinder Liner
RV.7700.113
MAGNUM (o-ring)

6
Piston 100 mm
RV.7700.008
3 Rings

6
Piston 100 mm
RV.7700.009
4 Rings

7
Piston 100,50 mm
RV.7700.010
3 Rings

7
Piston 100,50 mm
RV.7700.011
4 Rings

8
Piston Ring Set 100 mm
RV.7700.018
2,5 – 2,5 – 2,5 – 5

8
Piston Ring Set 100 mm
RV.7700.019
2,5 – 2,5 – 4

9
Piston Ring Set 100,50 mm
RV.7700.020
2,5 – 2,5 – 2,5 – 5

9
Piston Ring Set 100,50 mm
RV.7700.021
2,5 – 2,5 – 4

10
Valve Set
RV.7700.053


10
Valve Set
RV.7700.054
MAGNUM

11
Gasket Set
RV.7700.052


12
Gasket and Valve Set
RV.7700.056
Universal

12
Gasket and Valve Set
RV.7700.063


12
Gasket and Valve Set
RV.7700.064
MAGNUM

13
Cylinder Liner Head Complete
RV.7700.004


13
Cylinder Liner Head Complete
RV.7700.006
MAGNUM
